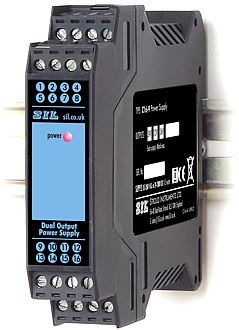

Dual Power Supply - C16-9

...A general purpose process instrumentation DC power supply


Outputs of up to 36V are available, each output supplying a maximum current of 40mA per output. Higher voltages may be obtained by connecting outputs in series. Outputs may be of mixed voltages.

Applications include: powering two-wire transmitters operating on 4-20mA signals providing power a supply for transducers, 24V signal conditioning modules, etc.

  • Universal AC/DC input supply 85-260 VAC, 24-200VDC
  • Dual outputs - each 40mA max
  • Standard outputs 12V, 24V, 36V (others to order)
  • Outputs can be connected in series to provide a single output at higher voltages.
  • Outputs may be of mixed voltage
    e.g. Output 1 = 12V, Output 2 = 24V
  • High efficiency - cool running
  • DIN rail mounting
  • Removable terminal blocks
  • 5 year warranty

See more in the C16 range >

Dual 4-20mA loop power supply
